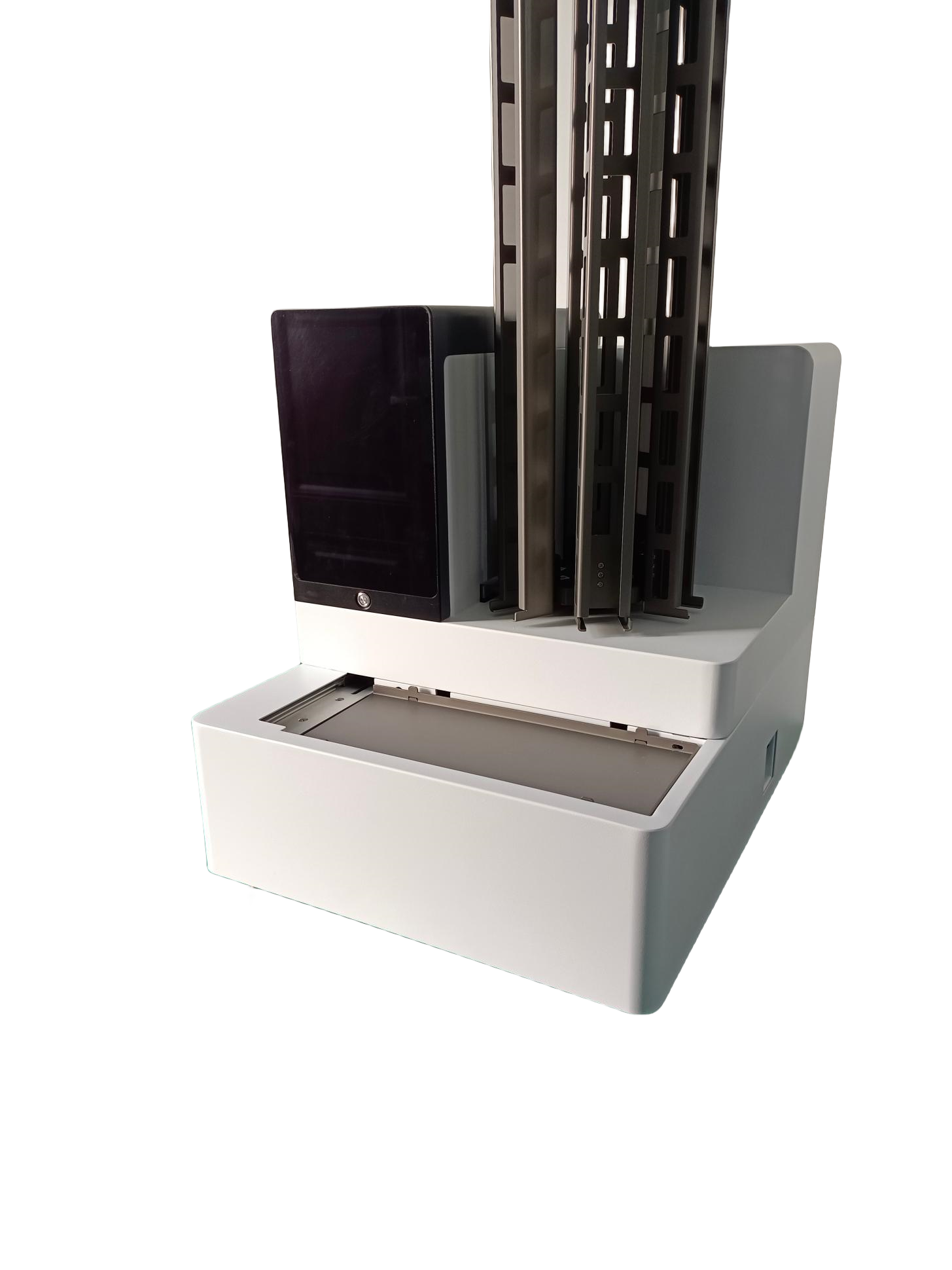

Tissue Cassette Laser Printer
Alfine Lab Cassette Printer for histology, 6 Color Laser Printing (ribbon or cartridges free ), no extra consumable materials.
Description
Overview
Alfine Lab Cassette Printer for histology, 6 Color Laser Printing (ribbon or cartridges free ), no extra consumable materials.
Code: PrintSmart LCPlus-330
Technical specification
|
Capacity of loading |
Metal Frame for stack(50-75 cassettes/stack) Plastic hopper for sleeves(50-100cassettes/sleeves) |
Hopper: 6 |
|
Output capacity of collection |
Standard : 330 cassettes |
Laser: UV(355nm) Infrared(1064nm) |
|
Print speed |
3 seconds/cassette More than 20slides/min |
Date Interface: USB |
|
Print resolution |
2500dpi |
Dare Acquisition: Barcode Reader |
|
Display |
Optional:10 inch touch screen |
Working Temp: 5-40 Degree |
|
Weight |
G.W./N.W.:67/45kgs |
Voltage: 110-240 VAC |
|
Dimensions |
440x550x480mm |
Power Draw: 120 VA |
Character
The embedded box to be printed is placed horizontally in the feeding rack without getting stuck.
The printed QR code is 100% scannable.
There is no limit to the number of fields to be printed if the print area is allowed.
The writing printed on the embedded box is resistant to scratching,xylene, alcohol and other organic solvents.
The data in the list to be printed has the power off function, so that the edited data will not be lost.
The printing point of the buried box is equipped with electromagnet point position device, and the printing point positioning is accurate.
The buried box should be pushed forward laterally rather than forward on an inclined plane to avoid overlapping the buried box on the tray during collection.
Key Parameters
High Printing Speed: 3 seconds per cassette, more than 20 cassettes/Minute
High Printing Resolution: 2500 dpi
Small size for the laboratory space
Options: Plastic hooper or Metal hooper for sleeve pack
